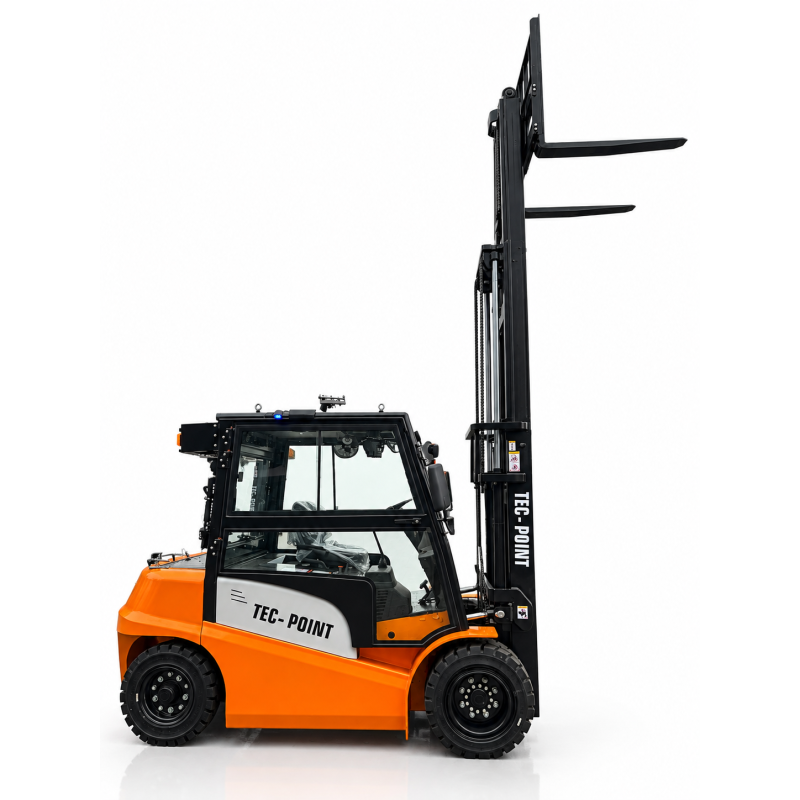

Tec-Point CPD50E – Electric Forklift with 5.0 t Capacity for Demanding Industrial Applications

The Tec-Point CPD50E from the E-Series is a powerful electric counterbalance forklift designed for demanding material-handling applications in industrial facilities, manufacturing plants, warehouses and logistics operations. With a rated capacity of 5,000 kg at a 500 mm load centre, it is built for companies that regularly handle heavy loads while benefiting from the advantages of modern electric drive technology.

The CPD50E combines high lifting capacity, powerful electric drive technology and extensive operator comfort and safety equipment in a professional heavy-duty package. Within the Tec-Point E-Series, it is positioned as the solution for particularly demanding internal transport and handling applications.

Powerful electric drive for heavy loads

The CPD50E is equipped with an 18 kW traction motor and a powerful 26 kW lift motor, providing the performance reserves required for regular travel, lifting and handling cycles with heavy loads.

The electronic ZAPI control system supports precise and controlled operation of the travel and working functions. With an unladen lifting speed of up to 400 mm/s, the forklift is designed for efficient workflows and high handling performance.

This makes the CPD50E a powerful electric solution for manufacturing facilities, larger warehouses and industrial logistics operations where heavy goods need to be moved efficiently and reliably.

High-capacity 48 kWh LiFePO4 battery

Power is supplied by a 80 V / 606 Ah LiFePO4 lithium iron phosphate battery with a total energy capacity of 48 kWh.

The integrated Battery Management System (BMS) monitors key battery parameters and supports reliable and efficient battery operation.

A powerful 200 A dual-port charger is provided for charging, ensuring that the charging system is appropriately matched to the high battery capacity and professional operating profile of the CPD50E.

Triplex full free lift mast with 4,500 mm lift height

The CPD50E is equipped with a 3-stage triplex full free lift mast with a maximum lift height of 4,500 mm.

The lowered mast height is approximately 2,240 mm, while free lift with the load backrest is approximately 950 mm. Full free lift allows the forks to be raised before the overall mast height increases significantly, which is particularly advantageous when working indoors or in areas with restricted overhead clearance.

At a lift height of 4,500 mm and a 500 mm load centre, the residual capacity is approximately 4,800 kg, allowing the CPD50E to maintain an exceptionally high usable capacity even at full working height. CPD20E

The heavy-duty 1,070 mm forks are designed to match the high load-capacity class of the truck and are well suited to professional handling of heavy pallets and materials.

Enclosed comfort cab with heating and ventilation

The fully enclosed operator cab with heating and ventilation provides a protected and comfortable working environment for extended daily operation.

A Toyota-style operator seat further enhances driver comfort. This makes the CPD50E particularly suitable for operations where the forklift is used for longer shifts and under varying ambient temperatures.

Extensive safety equipment for professional operation

In addition to its high load capacity, the CPD50E features a comprehensive range of safety and driver-assistance equipment for day-to-day operation.

A rear-view camera improves visibility when reversing and manoeuvring, while the additional reverse radar warning system assists the operator in detecting obstacles behind the forklift.

A blue perimeter safety light provides an additional visual warning for people in the surrounding work area. Full LED lighting further improves visibility and illumination of the working environment.

This combination makes the CPD50E not only powerful, but also well equipped for demanding industrial and logistics applications.

Solid tyres for high-load operation

The CPD50E is equipped with solid tyres on both the front and rear axles.

This robust tyre configuration is particularly suitable for paved industrial, production, warehouse and logistics surfaces. As no air pressure is required, the risk of downtime caused by punctures or pressure loss is reduced.

For heavy loads and intensive operating cycles, solid tyres provide a durable and low-maintenance solution for professional material handling.

Premium equipment for demanding workflows

The Tec-Point CPD50E combines 5.0 t capacity, powerful electric drive technology, a 43 kWh LiFePO4 battery and a 4.5 m triplex mast into a high-performance package for professional material handling.

The enclosed comfort cab with heating and ventilation provides a pleasant working environment, while the rear-view camera, radar warning system, blue safety light and LED lighting support the operator during everyday manoeuvring and transport tasks.

The result is a heavy-duty electric forklift for companies looking to combine high load capacity, electric efficiency, operator comfort and practical safety equipment.

E-Series – flagship model for heavy-duty transport

The CPD50E represents the high-capacity solution within the Tec-Point E-Series for particularly demanding material-handling tasks.

With a 5,000 kg rated capacity, 4,500 mm lift height, 18 kW traction motor, 26 kW lift motor and 43 kWh LiFePO4 battery, the CPD50E provides significantly greater performance reserves than the smaller models in the E-Series and is specifically designed for heavy-duty transport applications.

This makes it particularly suitable for industrial operations, manufacturing companies, large warehouses and logistics centres where heavy loads need to be moved regularly, efficiently and reliably.

12-month warranty and reliable spare parts availability

The Tec-Point CPD50E is supplied with a 12-month warranty.

Common spare and wear parts are available from Tec-Point directly from stock or at short notice by order. This supports reliable parts availability and helps minimise operational downtime.
