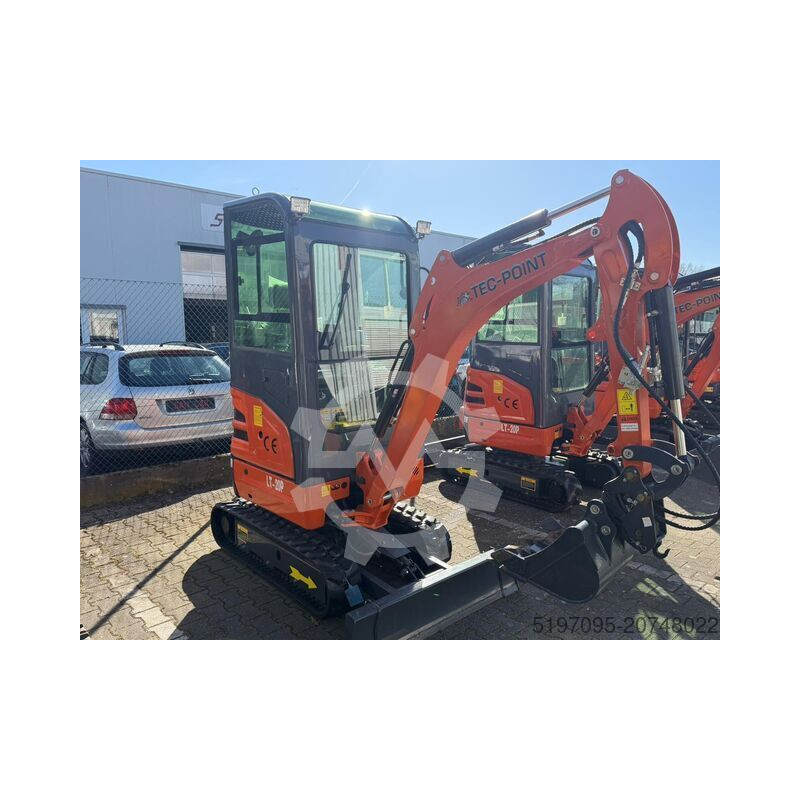

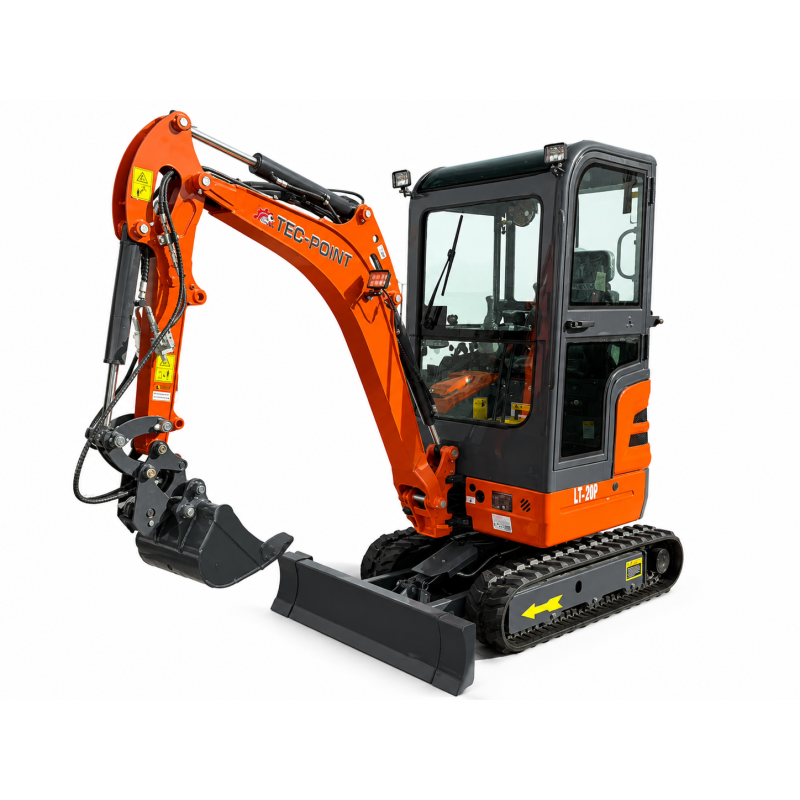

The Tec-Point LT-20 PRO is a versatile 2-tonne-class mini excavator for construction, landscaping and municipal work. Its compact design, precise hydraulics and enclosed cab with heating make it a practical choice for a variety of everyday tasks.
Powered by a Kubota D902 three-cylinder diesel engine delivering 11.8 kW, the LT-20 PRO offers a maximum digging depth of 2.27 m and a maximum digging reach of 3.91 m. It is well suited to trenching, earthmoving, foundation work and landscaping.
The swing boom makes it easier to work where space is limited. The extendable undercarriage adjusts from 990 to 1,300 mm, allowing it to retract for narrow access and extend to provide a wider working stance.
230 mm rubber tracks, dual cast counterweights and a reinforced steel structure contribute to the machine’s robust construction. The dozer blade assists with levelling and site preparation.
The load-sensing hydraulic system with a variable-displacement axial piston pump provides smooth, precise control of the working functions. Ergonomic joystick controls simplify operation during digging and loading. Two travel speeds are available for manoeuvring and moving between work areas.
The enclosed cab with heating provides a sheltered working environment, including on colder days. A comfortable operator’s seat, LED work lights and a radio complete the equipment package. Hydraulic safety valves are also fitted.
The package includes a 250 mm trenching bucket, a 500 mm digging bucket, a 1,000 mm grading bucket and a hydraulic quick hitch.
With these attachments, the LT-20 PRO is equipped for a range of trenching, excavation and grading tasks. The quick hitch makes bucket changes quick and straightforward, allowing you to adapt the machine to the next job.
A hydraulic tilting quick hitch is available as an optional upgrade at additional cost.
Take a closer look at the Tec-Point LT-20 PRO and its equipment. Viewings are available by appointment.
Call us or send us a message. We’ll be happy to answer your questions and provide a quote.
| Engine brand | Kubota |
| Cabin | Enclosed comfort cabin with heater |
| Warranty | 12 months Europe-wide |
| CE | Yes |
| Location | Rheda-Wiedenbrück, Germany |
| Delivery time | approx. 95 days |
| Availability | Made to order |
| Transport weight | 1,820 kg |
| Transmission | Automatic |
| Fuel type | Diesel |
| Travel speed | 2.2 / 4.5 km/h |
| Gradeability | 30° |
| Ground clearance | 460 |
| Colour | Orange |
| Seats | 1 |
| Manufacturer | Tec-Point |
| Maximum lifting height | 3.570 |
| Undercarriage type | crawler |
| Engine type | Piston motor |
| Displacement | 898 cm³ |
| Operating weight [kg] | 2,000 kg |
| Fuel consumption per hour [l/h] | 1.5 l/h |
| Drive condition [%] | 100 |
| Track condition [%] | 100 |
| Adjustable undercarriage | 990–1300 |
| Total length [mm] | 3600 |
| Total width [mm] | 125 |
| Total height [mm] | 2450 |
| Bucket capacity [m³] | 0.04 m³ |
| Power [kW] | 11.8 kW (16.04 hp) |
| Max digging depth [mm] | 2270 |
| Track width [mm] | 230 |
| Hydraulic pressure [MPa] | 230 |
| Fuel tank [L] | 19 l |
| Torque | 51.3 Nm at 1,800 rpm |
| Engine oil | 3,7 l |
| Drawbar pull | 18 kN |
| Number of engine cylinders | 3 |
| Engine model | D902 |
| Bucket breakout force | 16 kN |
| Hydraulic oil flow rate | 64 l/min |
| Pump type | Axial piston pump |
| Hydraulic oil tank | 17,5 l |
| Ground pressure | 29 kPa |
| Maximum dozer blade digging depth | 190 |
| Maximum dozer blade lift height | 280 |
| Tail swing radius | 735 |
| Boom swing angle left/right | 62° left / 53° right |
| 500 mm bucket | included |
| Hydraulic quick hitch | included |
| Hydraulic control valve | Load-sensing control valve |
| Maximum digging reach | 3910 |
| Maximum dumping height | 2480 |
| Maximum vertical digging depth | 1910 |
| Boom offset left/right | 510/345 |
| 100 cm bucket | included |
| 25 cm bucket | included |
| Track material | Rubber tracks |
Pickup on site in Rheda-Wiedenbrück or shipping by freight forwarder throughout Europe.
Delivery time: 17.01.2027
Location: Rheda-Wiedenbrück, Germany
