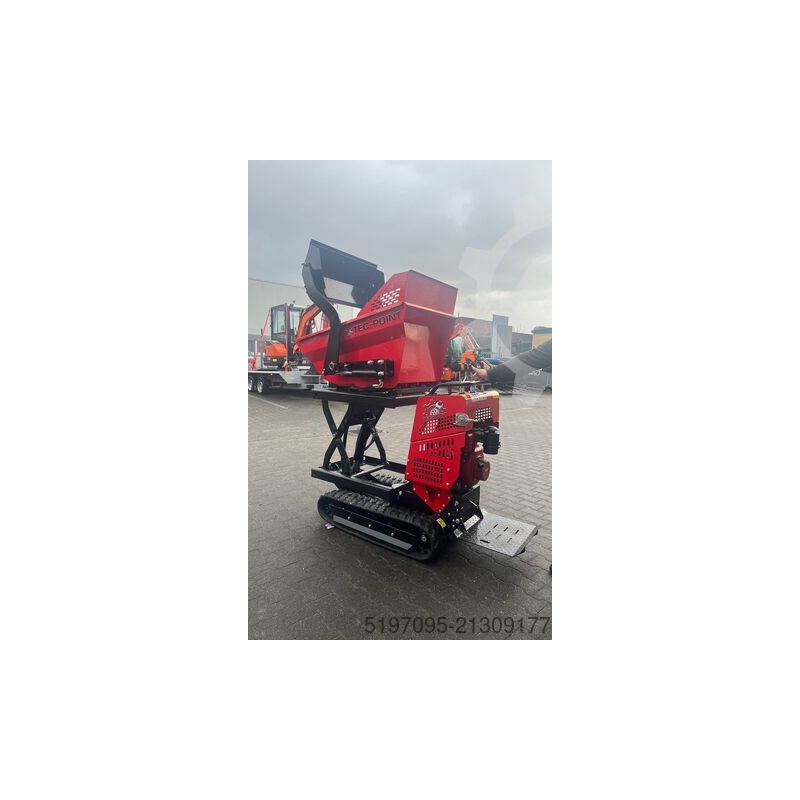

Tec-Point YX500S Tracked Dumper – 500 kg Payload with Hydraulic High-Tip Function

Compact, manoeuvrable and designed for professional material handling – with 500 kg payload, hydraulic high-tip function, operator platform and Koop 173 diesel engine.

The Tec-Point YX500S is a compact tracked dumper designed for efficient transport of soil, gravel, sand, building materials and other bulk materials.

With its 500 kg payload, hydraulic high-tip system and robust tracked undercarriage, the YX500S is particularly well suited to confined jobsites, unpaved surfaces and difficult ground conditions. Its compact dimensions also make it a practical choice for construction, landscaping, municipal work and agricultural applications.

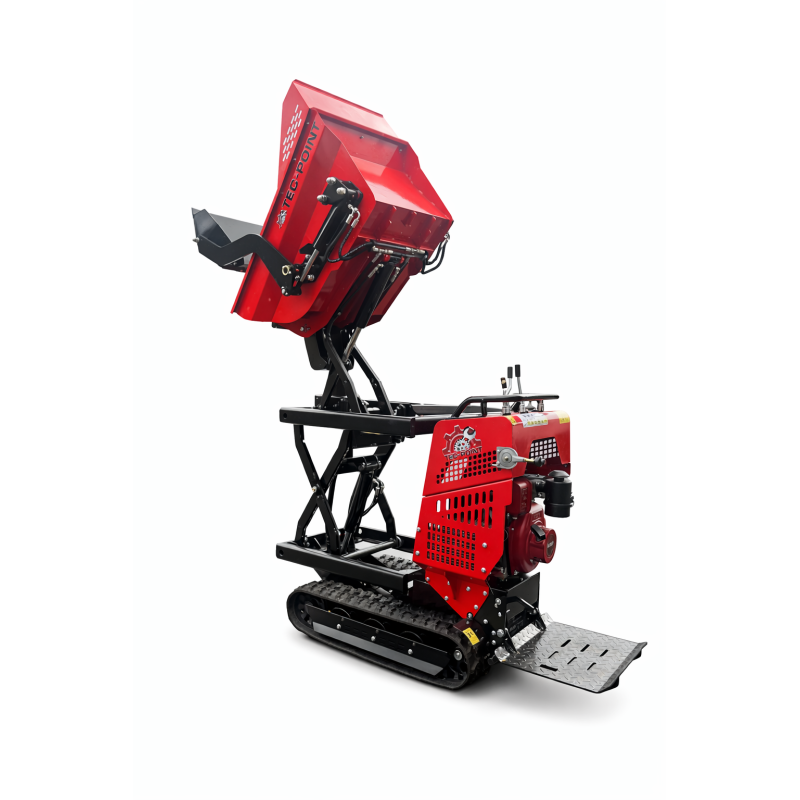

Hydraulic high-tip function for efficient unloading

One of the key advantages of the YX500S is its hydraulic lifting and tipping system.

The skip can be raised to a height of up to 1,200 mm, with a tipping height of up to 1,050 mm. This allows material to be discharged directly into trailers, containers or other elevated loading areas.

The hydraulic tipping mechanism provides a tipping angle of up to 90°, helping the skip empty efficiently and reducing manual handling on site.

For repeated loading and transport cycles, this feature can significantly simplify material handling and save time during daily operation.

Koop 173 diesel engine

The Tec-Point YX500S is equipped with a Koop 173 diesel engine.

The engine delivers approximately 4.0 kW / 5.5 hp at 3,600 rpm and complies with the EU Stage V emissions standard.

Its compact engine configuration is well matched to the requirements of the dumper and provides the power needed for transport and manoeuvring tasks with a full load.

500 kg payload and practical skip capacity

With a maximum payload of 500 kg, the YX500S can transport a wide range of materials around the jobsite.

The skip has a capacity of 200 litres and is suitable for materials such as:

• soil and topsoil
• sand and gravel
• crushed stone
• construction materials
• landscaping materials
• agricultural loads

With dimensions of approximately 1,050 × 730 × 730 mm, the skip offers a practical balance between load capacity and compact machine dimensions.

Tracked undercarriage for difficult ground conditions

The robust tracked undercarriage provides good traction and stable machine support on unpaved or uneven surfaces.

With a track width of 180 mm and a ground contact length of approximately 1,000 mm, the machine distributes its weight effectively across the ground.

This makes the YX500S suitable for soft, uneven or difficult terrain where a wheeled dumper may be less practical.

A ground clearance of 110 mm further supports operation on typical construction-site surfaces.

Comfortable operation from the operator platform

The Tec-Point YX500S features a practical operator platform with easily accessible controls.

Clearly arranged control levers provide direct and intuitive operation of the travel, lifting and tipping functions.

The elevated operating position gives the operator a good overview of the machine, travel path and working area, which is especially useful when manoeuvring in confined spaces.

Compact dimensions for restricted jobsites

With an overall width of approximately 880 mm, the YX500S can work in areas where larger dumpers would be too wide or difficult to manoeuvre.

Its compact design, narrow tracked undercarriage and operator platform make it particularly suitable for:

• narrow access routes
• confined construction sites
• work between buildings
• landscaping projects
• renovation work
• restricted yards and properties
• municipal and agricultural use

The undercarriage width is approximately 700 mm, while the overall machine width is around 880 mm.

Manoeuvrable and practical for daily transport work

With a travel speed of approximately 2.88 km/h, the YX500S can be moved around the jobsite in a controlled manner.

A minimum turning radius of approximately 1,150 mm helps when manoeuvring in tight spaces, while a gradeability of up to 20° extends its working capability on sloping and uneven ground.

This combination of compact size and good manoeuvrability makes the YX500S a practical machine for everyday material transport.

Compact, versatile and ready for daily use

The Tec-Point YX500S is a practical solution for businesses that need to move material efficiently across confined or difficult terrain.

The combination of 500 kg payload, hydraulic high-tip function, compact tracked undercarriage, operator platform and Koop diesel engine makes it a versatile machine for construction, landscaping, municipal services and agricultural applications.
