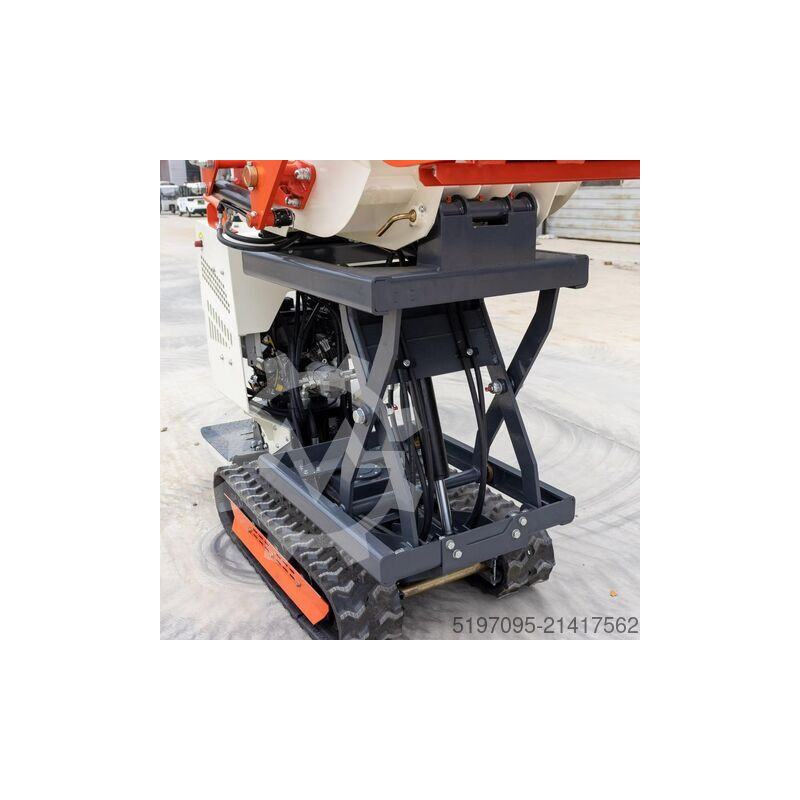

The mini tracked dumper HT500Y-4 is the ideal solution for construction, landscaping, agriculture, and work in confined spaces. Thanks to rubber tracks, hydraulic tipper, and strong lifting function, the dumper is extremely off-road capable, stable, and easy to operate. The machine impresses with its compact design, high load capacity, and reliable Briggs & Stratton petrol engine.
Take advantage of our current sales promotion: discount on all tracked dumper models – only for a short time and while stocks last!
The HT500Y-4 is ready for immediate use and offers a strong combination of performance, maneuverability, and operating comfort.
| Engine | Briggs & Stratton |
| Power | 6.5 HP at 3600 rpm |
| CE | Yes |
| Location | Rheda-Wiedenbrück, Germany |
| Delivery time | Immediate |
| Availability | Available immediately |
| Gradeability | 20° |
| Ground clearance | 110 mm |
| Manufacturer | Tec-Point |
| Own weight | 550 kg |
| Maximum lifting height | 1020 mm |
| Tilt angle | 100° |
| Undercarriage width | 700 mm |
| Engine type | 1-cylinder, OHV, 4-stroke, air-cooled |
| Displacement | 203 cc |
| Fuel | Petrol |
| Tank capacity | 3.6 liters |
| Maximum payload | 500 kg |
| Loading volume of bucket | 200 dm³ |
| Tipping system | hydraulic |
| Machine dimensions without pedal & bucket | 1570 × 880 × 1450 mm |
| Machine dimensions with foot pedal & bucket | 2050 × 880 × 1450 mm |
| Bucket dimensions | 1050 × 730 × 730 mm |
| Maximum dumping height | 970 mm |
| Tipping distance | 220 mm |
| Track width | 180 mm<br /> 520 mm |
| Track contact area | 1000 mm |
| Turning radius | 1150 mm |
| Speed | 2.88 km/h |
| Rubber tracks | for optimal grip |
Location: Rheda-Wiedenbrück. Viewing possible by appointment. Delivery throughout Europe possible via freight forwarder.
Delivery time: 02.12.2026
Location: Rheda-Wiedenbrück, Germany
